Birati, Kolkata, West Bengal
Board Sizing and Finishing

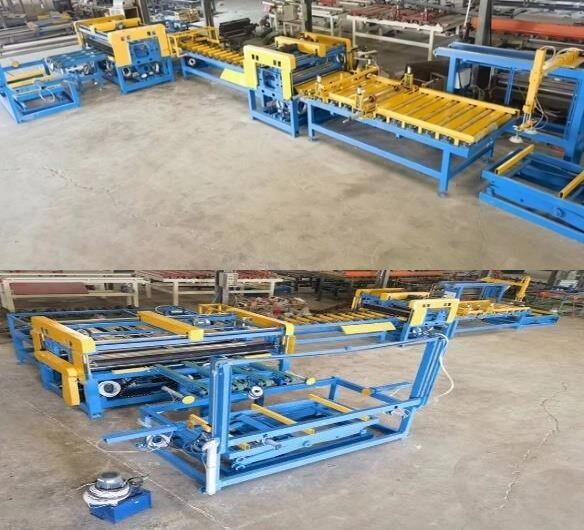

Leading Manufacturers, Exporters and Wholesaler of L Type Chain Double Dimension Saw, Plywood Dipping Machine, Plywood Double Chain Saw Machine and Semi Automatic Plywood Brush Sanding Machine from Kolkata.
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Type | Sawing Machines |
| Voltage | 220v, 440v |
| Certification | CE Certified |
| Application | Cutting |
| Automatic Grade | Automatic |
| Color | Blue |
| Driven Type | Electric |
Preferred Buyer From
| Location | Worldwide |
This machine is mainly used for Trimming of four rough Edges of Plywood, Block Board, Practical Board and MDF Board etc.
Salient Features
• Cutting saw speed above 6000 RPM.
• Trolly movement on Liner-Guide rails .
• Synchronized Longitudinal & Traverse board movement.
• Fast, Easy and Labour saving operations.
• Auto-Board stacker with Hydraulic Scissor Lift.
Dust Collector and Air Compressor not included.
| Business Type | Manufacturer, Exporter, Supplier |
| Material | Metal |
| Application | Industrial Use |
| Country of Origin | India |
| Speed | 20 Mt Per Minute Running |
| Number of Gear Boxes | 2 Gear Boxes |
Preferred Buyer From
| Location | Worldwide |
Salient Features
• 12 Nos. Rollers, Roller Length 54 “, Roller Dia 7”.
• Kirloskar Make Pump Capacity 32 Liters for Spraying of Chemicals On Plywood Surfaces.
• Heating System for Chemical Heating with Inbuilt Heating SS Tank.
• Gear Boxes 2.
• Two Motors 3 Hp Drive Motor & 2 Hp Pump Motor.
• Both Side Trolley Attached for Feeding & Discharge of Plywood
• 20 Mt Per Minute Running Speed
• Fully Panel Operated - [ The Machine is Inclusive of Control Panel]
| Business Type | Manufacturer, Exporter, Supplier |
| Application | Plywood Industry |
| Certification | CE Certified |
| Voltage | 200 VAC 575VAC |
| Type | Automatic |
| Country of Origin | India |
| Warranty | 1year |
| Material | Stainless Steel |
| Power Source | Electric |
| Frequency | 50-60 Hz |
Preferred Buyer From
| Location | Worldwide |
Heavy duty Chain Feed Cutting Machine suitable for cutting upto 8’ x4’ sheet with a chain conveyor system on both sides of the machine with a provision for self pressing system from top and continuous cutting, one
si8de of the saw will be fixed from the other side (right hand side) adjustable from 2’ to 8’ according to the desired width complete with 2 Nos. (5.0 H.P. 2900 R.P.M.) Motors for the purpose of cutting R.P.M. Motors
for the purpose of cutting, 1 No. (3 H.P. 1440 R.P.M.) motor for driving the chain conveyor and 1 No. Reduction Gear Box. Pre-cut saw system arrangement is available with 2 Nos. (0.5 H.P.) MOTOR. The Pre cut saw is an ideal attachment to prevent and chipping. TCT saws are not included.
| Business Type | Manufacturer, Exporter, Supplier |
| Color | Blue |
| Automatic Grade | Semi Automatic |
| Usage/Application | Plywood Industry |
| Certification | CE Certified |
| Voltage | 380V |
| Country of Origin | India |
| Material | Stainless Steel |
Preferred Buyer From
| Location | Worldwide |
Salient Features
• MS Body with Heavy Duty Channels.
• 7.5 HP 1440 RPM 2 Nos Motor.
• 5.0 HP 2 Nos. Motors.
• HP Gears Motors.
• Inside and Out Side Trolly Three Roller for Guide.
• Six Brush Rollers (German Abrasive)
• Heavy Duty 5” Rubber Roller for Conveyor.
• Guide Rollers.
• Motorized Size Adjuster with Display.
• Fuji Drives for Speed Control.
• Electric Panel with Wiring.
• 5HP Dust Collectors with Pipes.
Technical Specifications
• MS Body with Heavy Duty Channels.
• 7.5 HP 1440 RPM 2 Nos. Motor.
• 5.0 HP 2 Nos. Motors
• 3.0 HP Gears Motors.
• Total Power: 28 HP
